Features and Benefits

Rotors are fully enclosed for safety
Low profile for maximum stability
Pulling unit allows the legs to do the work
Standard clay hood reduces soil build-up
Minimum turf damage
Clutch lever cuts power to rotor for safety
Simply remove one nut to change rotors

Variety of Uses

Burying cable or pipe • Pruning roots • Removing most stumps • Installing invisible electric dog fence • Installing sprinkler systems • Defining landscape beds • Installing edging

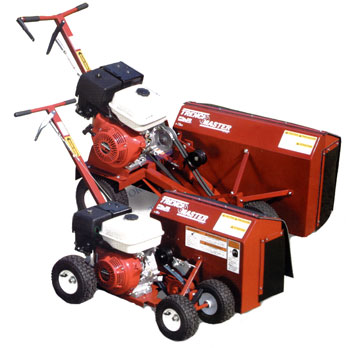

Model F704 TrenchMaster™

The Model F704 is a lightweight mini-trencher designed for ease of operation, maneuverability and versatility. Easily loaded, unloaded and operated by one person.

Model F904 TrenchMaster™

The Model F904 is designed primarily for irrigation and sprinkler system installation. Easily loaded, unloaded and operated by one person.

Model F1202 TrenchMaster™

The Model F1202 is a lightweight easily transported mini-trencher for heavier commercial projects. Virtually no compaction or turf damage.

TrenchMaster

Model	F704	F904	F1202
Engine	5.5 to 6.5 HP HD Industrial	9 HP Commercial Honda	9 or 13 HP Commercial Honda
Weight	135 lbs.	162 lbs.	250 lbs. 265 lbs.
Wheels	Steel with Pneumatic Tires
Points	Tungsten Carbide
Drive	Double Belt and Pulley System
Rate	Up to 20ft / min*	Up to 25ft / min*	Up to 20ft / min*
Depth	Up to 7in*	Up to 9in*	3 to 12in*
Width	1/2 to 2in	1/2 to 2in	3in*
Ship By	Motor Freight (Pre-Assembled)
*Dependent on soil conditions and rotor choice
