Brown Products, Inc. » EdgeMaster™

Features and Benefits

  • Heavy duty, all steel construction
  • Hollow one inch spindle provides larger bearings for longer wear
  • Blade mounts on a 1/2 inch shear bolt to protect the spindle
  • Dual purpose blade lever engages the blad and adjusts blade depth
  • Solid steel control rod
  • One year limited commercial warranty

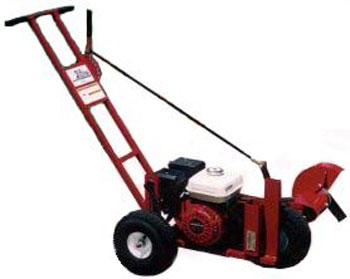

Model E104H EdgeMaster™

The Model E104H creates a new standard for the commercial edging industry. Designed with the rental industry in mind, this edger is built to take extreme abuse.

EdgeMaster
Model E104H
Engine 4 or 5.5 HP with Oil Alert
(Honda or GX Series Honda)
Weight 115 lbs.
Drive System Double Belt
Wheels Steel with 9" Pneumatic Tires
Ignition System Transistor
Top Governed Speed 3900 RPM
Valve System Overhead Valves
Fuel Capacity 3.88 Quarts
Construction Structural Steel
Frame 10 Gage Steel Plate
Clutch System Idler Pulley
Depth Control Clutch Lever
Blade Size Up to 10in
Blade Guard Semi-enclosed
Max. Curb Height 10in
Bearings 1in Industrial
Blade Mount 1/2in Grade 8 Bolt
Blade & Tool Holder 3in Steel Tubing
