Water, Trash, & Chemical Pumps

Downloads

• Warranty Form



Features

• See Table Below



Water/Trash Pump Warranty

Engine

• Commercial: 6 months
• Rental: 6 months
• Other: 12 months

Centrifugal Pump & Frame

• Commercial: 6 months
• Rental: 3 months
• Other: 12 months



Chemical Pump Warranty

Engine

• Commercial: 6 months
• Rental: 6 months
• Other: 12 months

Centrfugal Pump

• Commercial: 3 months
• Rental: 3 months
• Other: 3 month



Pump Models

Water Pump Models
GWP50	Inlet/Outlet Dia: 2" Max. Head: 118 ft. Max. Suction Head: 23 ft. Max. Flow: 158 GPM Engine: YK-550 (5.5HP) Dry Weight: 62 lbs. Dimensions: 19.1" x 14.2" x 16.3"

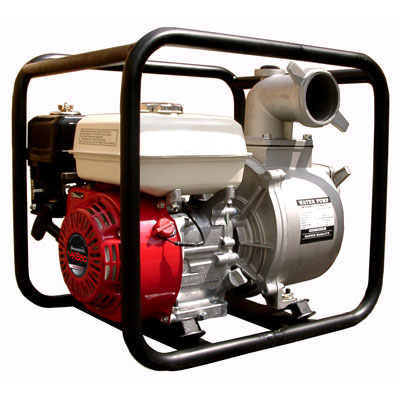

GWP80	Inlet/Outlet Dia: 3" Max. Head: 98 ft. Max. Suction Head: 23 ft. Max. Flow: 290 GPM Engine: YK-650 (6.5HP) Dry Weight: 101 lbs. Dimensions: 26.2" x 19.5" x 24.6"
GWP100	Inlet/Outlet Dia: 4" Max. Head: 92 ft. Max. Suction Head: 23 ft. Max. Flow: 423 GPM Engine: YK-900 (9.0HP) Dry Weight: 101 lbs. Dimensions: 26.2" x 19.5" x 24.6"
Trash Pump Models
GTP50	Inlet/Outlet Dia: 2" Max. Head: 98 ft. Max. Suction Head: 25 ft. Max. Flow: 185 GPM Engine: YK-650 (6.5HP) Dry Weight: 87 lbs. Dimensions: 26.2" x 19.5" x 24.6"
GTP80	Inlet/Outlet Dia: 3" Max. Head: 85 ft. Max. Suction Head: 26 ft. Max. Flow: 158 GPM Engine: YK-900 (9.0HP) Dry Weight: 93 lbs. Dimensions: 20.7" x 16.1" x 18.9"
Chemical Pump Models
CP50	Inlet/Outlet Dia: 2" Max. Head: 98 ft. Max. Suction Head: 23 ft. Max. Flow: 154 GPM Material: Fiberglass Reinforced Polypropylene Engine: YK-650 (6.5HP) Dry Weight: 52 lbs. Dimensions: 19" x 14" x 16"
