Yamakoyo Engines

UPDATED!

We just added the new T-Series models!

New T-Series Engines

Yamakoyo T-Series Engines

Downloads

  • Brochure soon



Features

  • Air Cooled
  • 4 Stroke OHV
  • Over Head Valve
  • Single Cylinder
  • Ignition: Solid State



Warranty

  • Commercial: 6 months
  • Rental: 6 months
  • Other: 12 months



Engine Models

T-2.5
  • Power: 2.5 HP
  • Torque: 3.6 N.m / 2500 RPM
  • Crankshaft PTO: 2-3/8 x 5/8" Dia., 3/16" Keyway
  • Displacement: 79cc
  • Fuel Capacity: 1.7 Qt / 1.3 L
  • Oil Capacity: 0.3 Qt / 0.3 L
  • Dimensions: 12x11x12 in / 31x29x31 cm
  • Dry Weight: 22 lbs / 10 kg
 T2.5
T-4
  • Power: 4 HP
  • Torque: 7 N.m / 2500 RPM
  • Crankshaft PTO: 2-7/16 x 3/4" Dia., 1/4" Keyway
  • Displacement: 118cc
  • Fuel Capacity: 0.7 Gal / 2.6 L
  • Oil Capacity: 0.16 Gal / 0.6 L
  • Dimensions: 12x14x13 in / 30x36x33 cm
  • Dry Weight: 29 lbs / 13 kg
 T4
T-6
  • Power: 5.5 HP
  • Torque: 10 N.m / 2500 RPM
  • Crankshaft PTO: 2-7/16 x 3/4" Dia., 1/4" Keyway
  • Displacement: 163cc
  • Fuel Capacity: 0.9 Gal / 3.4 L
  • Oil Capacity: 0.16 Gal / 0.6 L
  • Dimensions: 12x14x14 in / 30x36x36 cm
  • Dry Weight: 33 lbs / 15 kg
 T6
T-7
  • Power: 6.5 HP
  • Torque: 11 N.m / 2500 RPM
  • Crankshaft PTO: 2-7/16 x 3/4" Dia., 1/4" Keyway
  • Displacement: 196cc
  • Fuel Capacity: 0.9 Gal / 3.4 L
  • Oil Capacity: 0.16 Gal / 0.6 L
  • Dimensions: 12x14x14 in / 30x36x36 cm
  • Dry Weight: 33 lbs / 15 kg
 T7
T-8
  • Power: 8 HP
  • Torque: 17 N.m / 2500 RPM
  • Crankshaft PTO: 3-31/64 x 1" Dia., 1/4" Keyway
  • Displacement: 242cc
  • Fuel Capacity: 1.7 Gal / 6.4 L
  • Oil Capacity: 0.3 Gal / 1.1 L
  • Dimensions: 15x18x16 in / 39x46x41 cm
  • Dry Weight: 55 lbs / 25 kg
 T8
T-9
  • Power: 9 HP
  • Torque: 18 N.m / 2500 RPM
  • Crankshaft PTO: 3-31/64 x 1" Dia., 1/4" Keyway
  • Displacement: 270cc
  • Fuel Capacity: 1.7 Gal / 6.4 L
  • Oil Capacity: 0.3 Gal / 1.1 L
  • Dimensions: 15x18x16 in / 39x46x41 cm
  • Dry Weight: 55 lbs / 25 kg
 T9

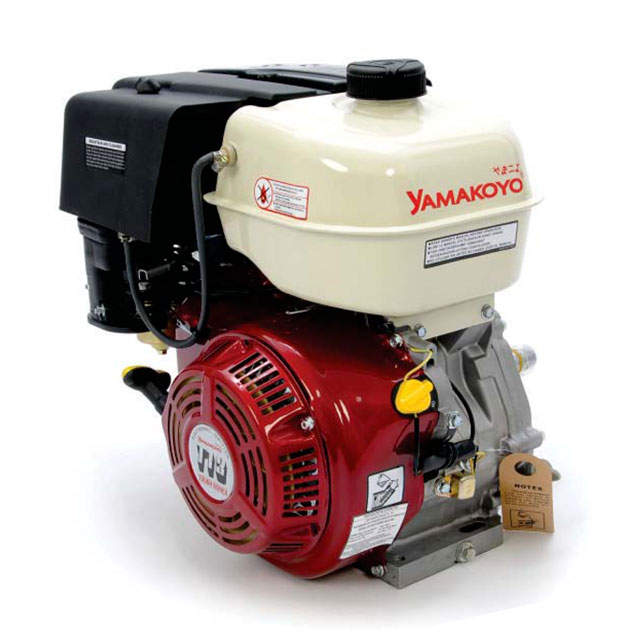

T-11
  • Power: 11 HP
  • Torque: 23 N.m / 2500 RPM
  • Crankshaft PTO: 3-31/64 x 1" Dia., 1/4" Keyway
  • Displacement: 337cc
  • Fuel Capacity: 0.9 Gal / 3.4 L / 1.3 L
  • Oil Capacity: 0.3 Gal / 1.1 L
  • Dimensions: 15x18x20 in / 39x46x51 cm
  • Dry Weight: 68 lbs / 31 kg
 T11
T-13
  • Power: 13 HP
  • Torque: 25 N.m / 2500 RPM
  • Crankshaft PTO: 3-31/64 x 1" Dia., 1/4" Keyway
  • Displacement: 389cc
  • Fuel Capacity: 0.9 Gal / 3.4 L / 1.3 L
  • Oil Capacity: 0.3 Gal / 1.1 L
  • Dimensions: 15x18x20 in / 39x46x51 cm
  • Dry Weight: 68 lbs / 31 kg
 T13
T-15
  • Power: 15 HP
  • Torque: 27 N.m / 2500 RPM
  • Crankshaft PTO: 3-31/64 x 1" Dia., 1/4" Keyway
  • Displacement: 420cc
  • Fuel Capacity: 0.9 Gal / 3.4 L / 1.3 L
  • Oil Capacity: 0.3 Gal / 1.1 L
  • Dimensions: 15x18x20 in / 39x46x51 cm
  • Dry Weight: 71 lbs / 32 kg
 T15
